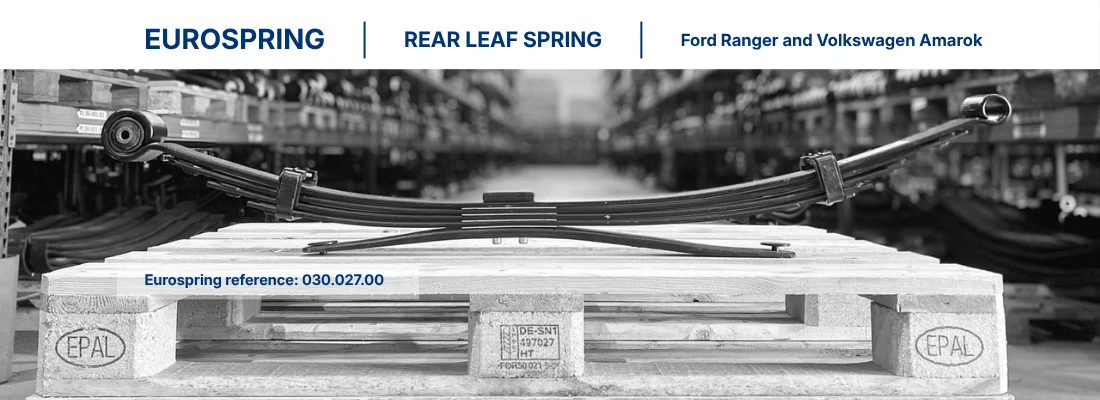

Eurospring rear leaf spring 030.027.00 for Ford Ranger and Volkswagen Amarok, with a reinforced 4+1 leaf configuration.
Compatible Brands

Rear Leaf Spring for Ford Ranger and Volkswagen Amarok

EuroSpring Team
September 18, 2026
4 min read

REAR LEAF SPRING FOR FORD RANGER AND VOLKSWAGEN AMAROK

IN STOCK

Part 030.027.00 combines a 4+1=5 leaves configuration and a dual center bolt system. It provides enhanced stability and long-term resistance, ideal for demanding commercial and off-road applications.

KEY BENEFITS

High load performance
and improved stability
Dual centre bolt system
for added strength
Reinforced structure
for intensive use
Optimised load distribution
across the leaf pack

TECHNICAL SPECIFICATIONS

Eurospring reference030.027.00
Configuration4 + 1 leaves
Leaf thicknesses1/9+1/8+1/8+1/9+1/14 mm
Width60 mm
Front / rear lengths580 / 740 mm
Camber120 mm
FixingDual centre bolts
Weight23.2 kg
Front bush (SB)Ø 14/55 mm
Rear eye diameterØ 32 mm
FORD
MB3C5560ME2J
VOLKSWAGEN
2HJ511151AN
EuroSpring
Zona Industrial do Cartaxo, Lote 18, A5
2070-681, Portugal
QUALITY ON THE MOVE
